Oil-wet coil-to-coil polishing line for 200/300/400 series stainless steel coil 0.5–1.0 mm thick and 300–1,250 mm wide, with CPC entry alignment and EPC recoiling.
Need other widths, thicknesses or finishes? Tell us about your project and we will propose the right configuration.

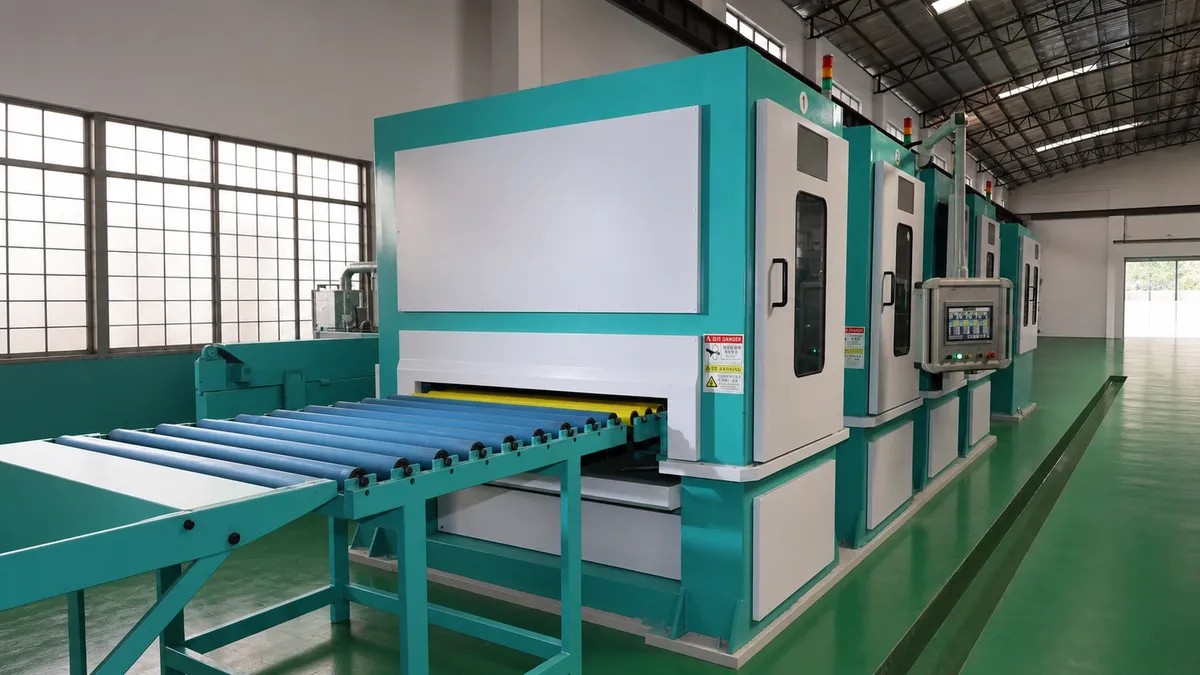

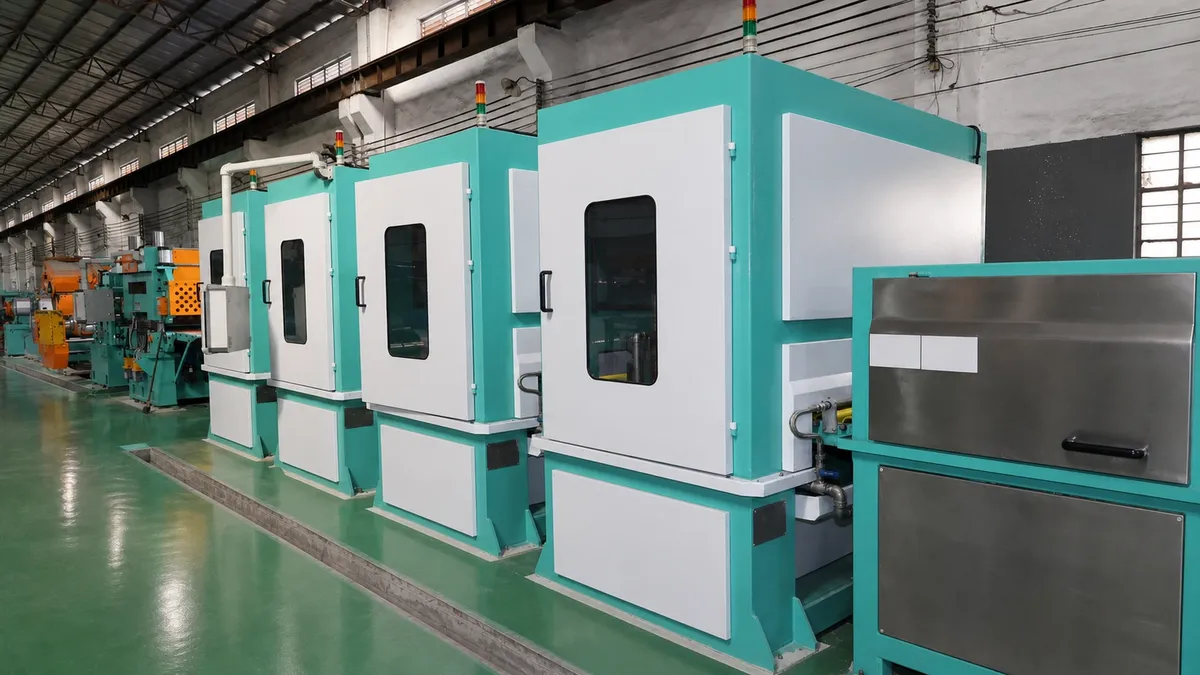

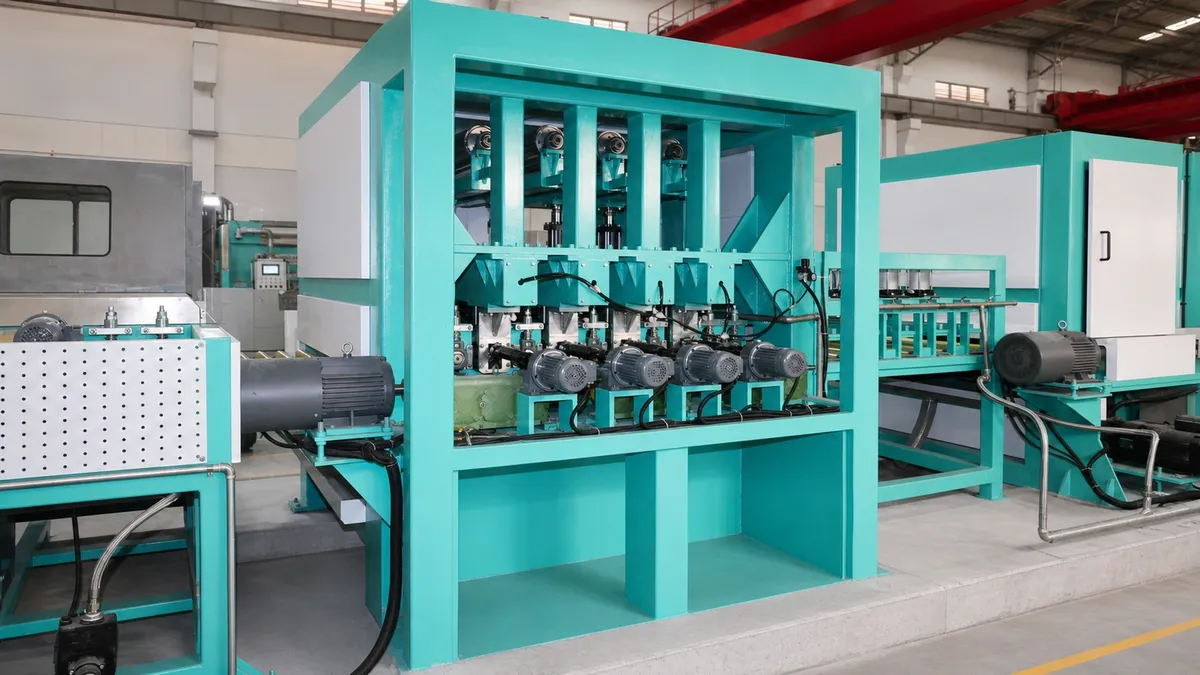

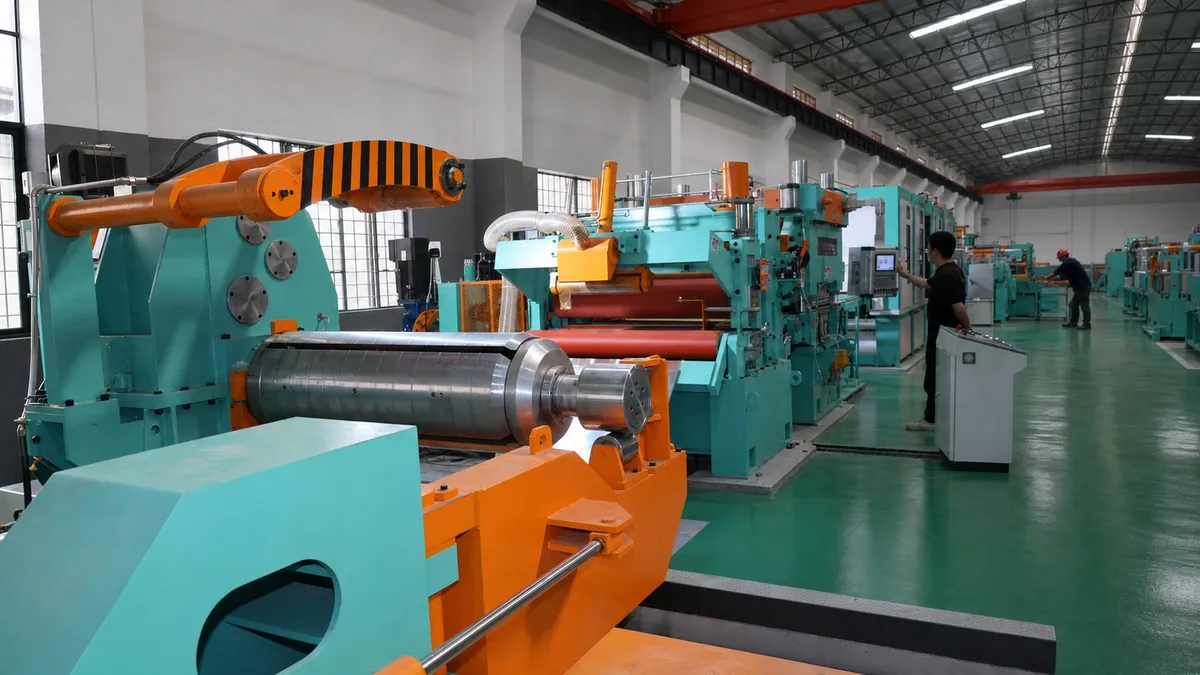

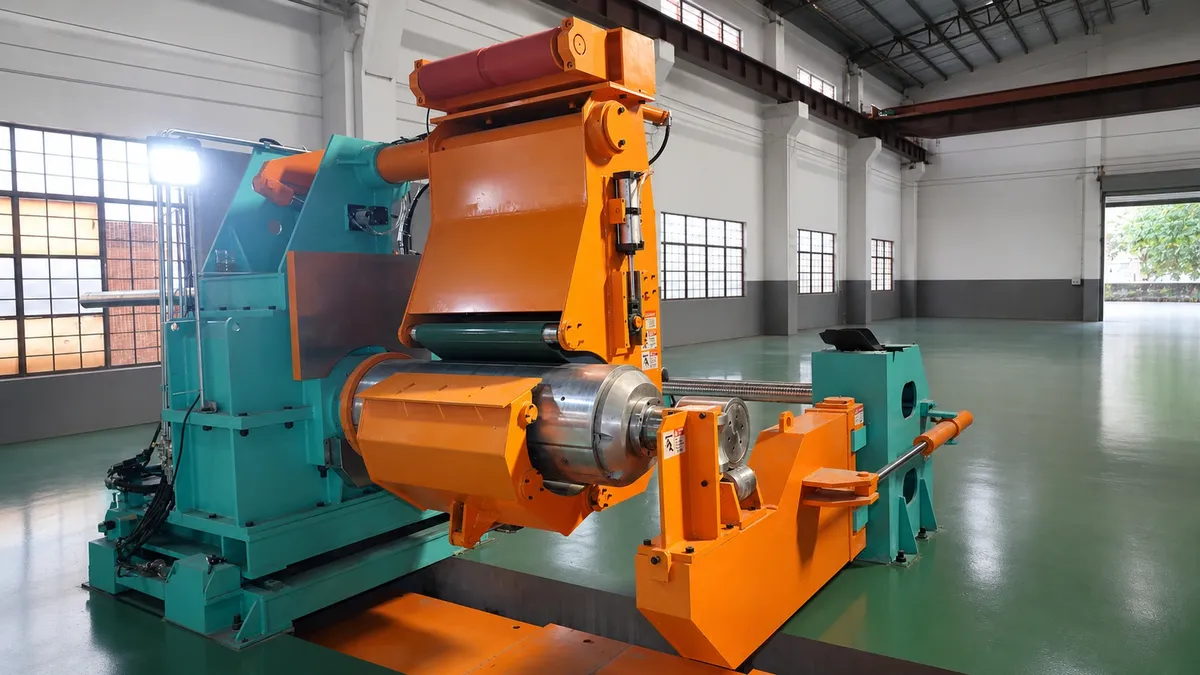

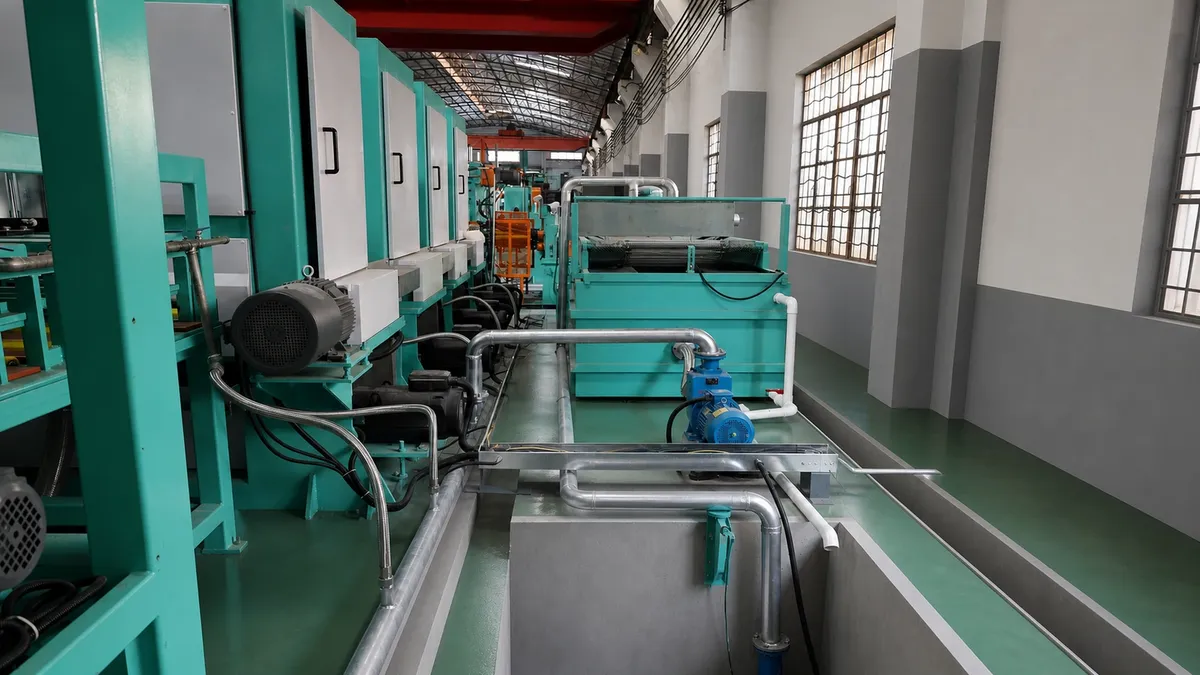

The GLORY MACHINERY 1300mm stainless steel coil polishing line is designed for coil-to-coil continuous processing of 200, 300 and 400 series stainless steel. The line combines coil handling, strip alignment, surface finishing, cleaning, drying and recoiling in one coordinated production process.
Its oil-wet polishing system can be configured for No.4, brushing or hairline finishing according to the required surface sample. CPC alignment supports stable strip feeding at the entry, while EPC control helps maintain an orderly coil edge during recoiling.
After polishing, the strip passes through the integrated cleaning and drying section before protective film can be applied. The documented processing window covers strip 0.5–1.0 mm thick and 300–1,250 mm wide, with coil ID of 480–520 mm and coil OD up to 1,600 mm.
The line is suitable for stainless steel service centers and manufacturers producing decorative or industrial coil surfaces. The final machine layout, polishing-head arrangement, electrical standard and process configuration can be customized according to project requirements.
Marked parameters are to be confirmed against the technical agreement of each project.
| Parameter | Value |
|---|---|
| Material | 200 / 300 / 400 series stainless steel coil |
| Thickness | 0.5–1.0 mm |
| Width | 300–1,250 mm |
| Coil OD | Up to 1,600 mm |
| Coil ID | 480–520 mm; sleeve options available |
| Finish | No.4 / brushing / hairline |
| Process type | Oil-wet coil-to-coil continuous processing |
| Control system | PLC + HMI with CPC and EPC control |
| Power supply | 380 V / 50 Hz / 3 phase; other standards available |
CPC alignment at the entry keeps strip feeding stable, and EPC control at the recoiler maintains an orderly coil edge.
The oil-wet polishing system can be configured for No.4, brushing or hairline finishes according to the required surface sample.
Polishing, cleaning, drying and protective-film lamination are integrated before recoiling, so finished coils leave the line protected.
Stainless Steel Coil Polishing Lines1300mm coil-to-coil polishing line running at up to 60 m/min, delivering No.4, Scotch-Brite and hairline finishes on stainless steel coil in a single pass.
Stainless Steel Coil Polishing Lines1300mm coil-to-coil polishing line for thin-gauge stainless steel coils below 1.0mm, using a 6-high leveler to flatten thin strip before polishing.
Stainless Steel Coil Polishing LinesOil-wet coil-to-coil polishing and grinding line with eight No.4 polishing units and a four-head hairline machine, processing steel coil 0.3–3.0 mm thick at up to 60 m/min.
Send us your material, width, thickness and desired finish. We will reply with a technical proposal.
