Automatic sheet-to-sheet 8K mirror polishing line combining oscillating polishing and a rotary disc 8K machine, for sheets up to 1250 × 4000 mm at 60–70 pcs/hour.
Need other widths, thicknesses or finishes? Tell us about your project and we will propose the right configuration.

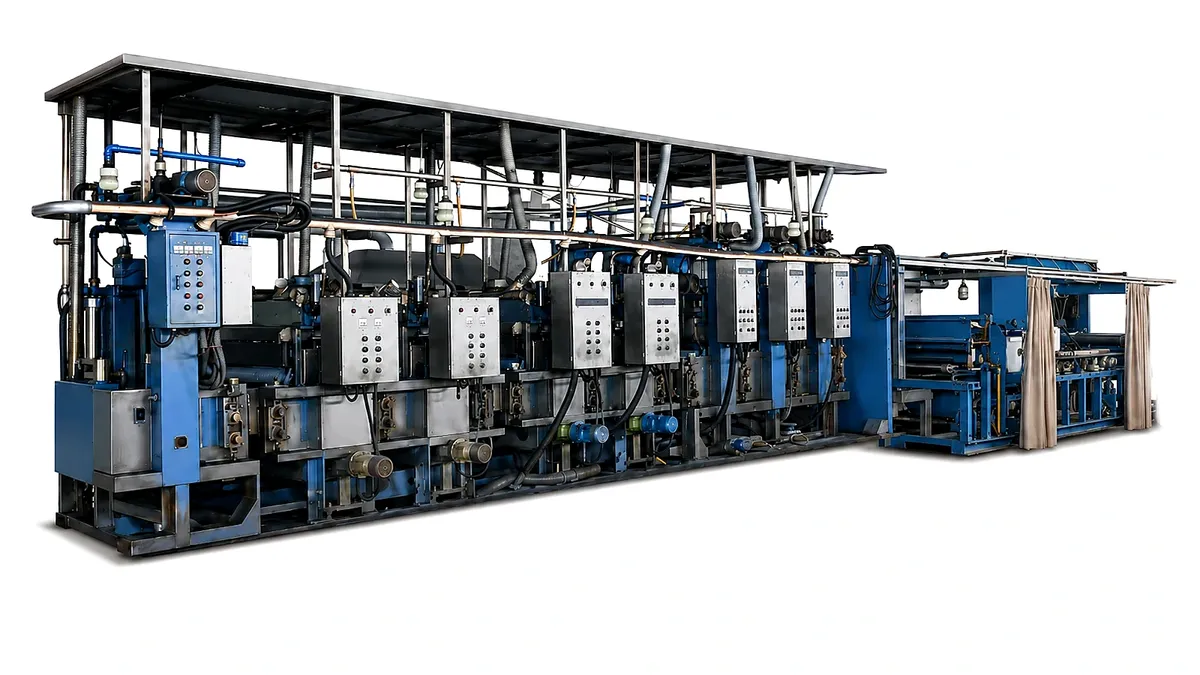

The 1300 Type Automatic Sheet-to-Sheet 8K Mirror Polishing Machine Line is designed for high-efficiency mirror finishing of stainless steel sheets. The line integrates automatic loading and unloading racks, a traditional oscillating 8K machine section, and the rotary disc 8K machine — also known as a mirror buffing machine — to achieve a bright and uniform No.8 / 8K mirror surface.
The line is suitable for 200, 300 and 400 series stainless steel sheets, depending on the incoming material quality and the required final mirror surface standard. It processes sheets 0.3–3.0 mm thick, up to 1250 × 4000 mm, with a documented output capacity of 60–70 pieces per hour.

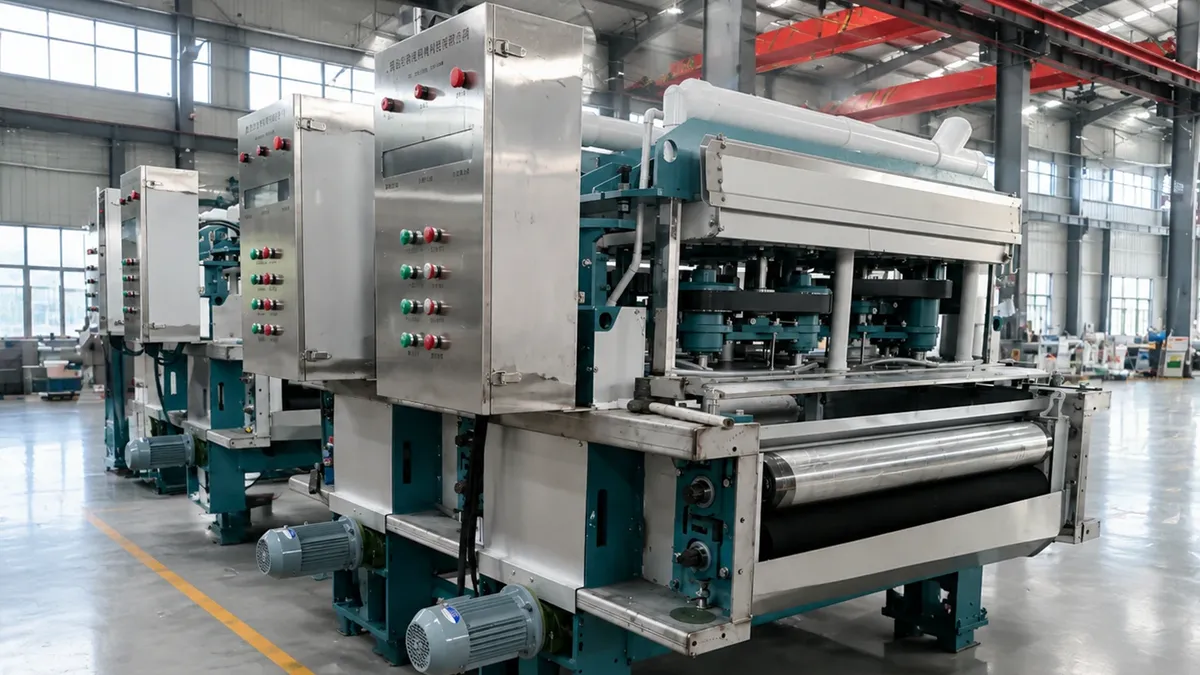

In the middle section — the core of the process — the oscillating polishing section prepares the surface and the rotary disc machine performs the final mirror buffing, improving polishing stability, surface brightness and mirror consistency. Automatic feeding and unloading keep sheet alignment stable and handling clean and safe.

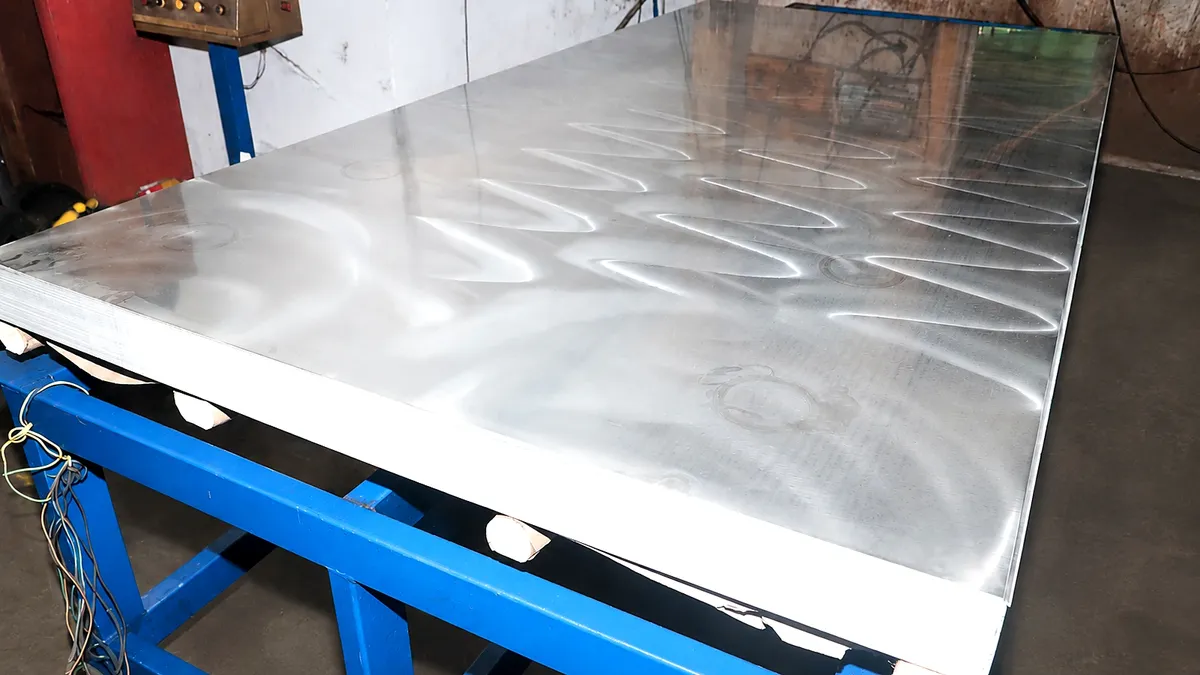

Finished sheets achieve a bright mirror surface suitable for decorative panels, elevator panels, architectural stainless steel, appliance panels and high-end metal products. Final capacity and mirror quality are confirmed against the stainless steel grade, sheet thickness, incoming surface condition, polishing consumables and the customer acceptance standard.
Marked parameters are to be confirmed against the technical agreement of each project.
| Parameter | Value |
|---|---|
| Machine type | 1300 type automatic sheet-to-sheet polishing machine line |
| Process | Oscillating polishing + rotary disc 8K mirror polishing |
| Working material | Stainless steel 200 / 300 / 400 series |
| Final surface | No.8 / 8K mirror surface |
| Max sheet width | 1,250 mm |
| Sheet thickness | 0.3–3.0 mm |
| Max sheet size | 1250 × 4000 mm |
| Output capacity | 60–70 pcs/hour |
| Loading / unloading | Automatic sheet loading and unloading racks |
Oscillating polishing prepares the surface and the rotary disc 8K machine performs the final mirror buffing, combining edge coverage with stable mirror quality.

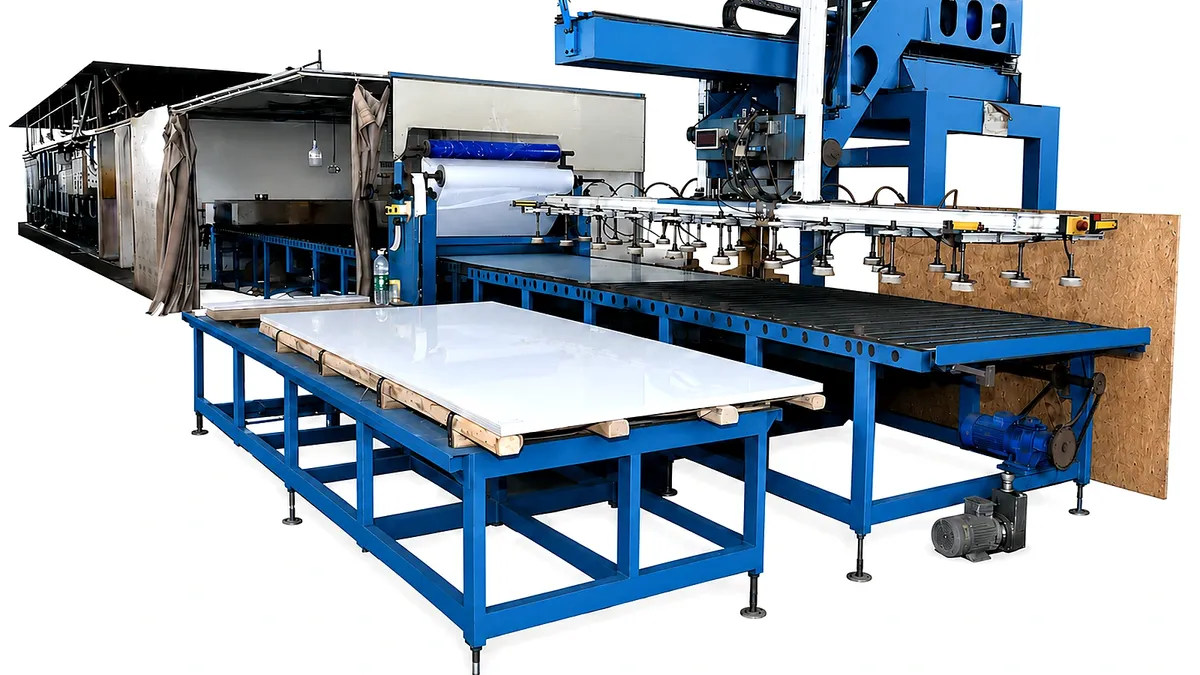

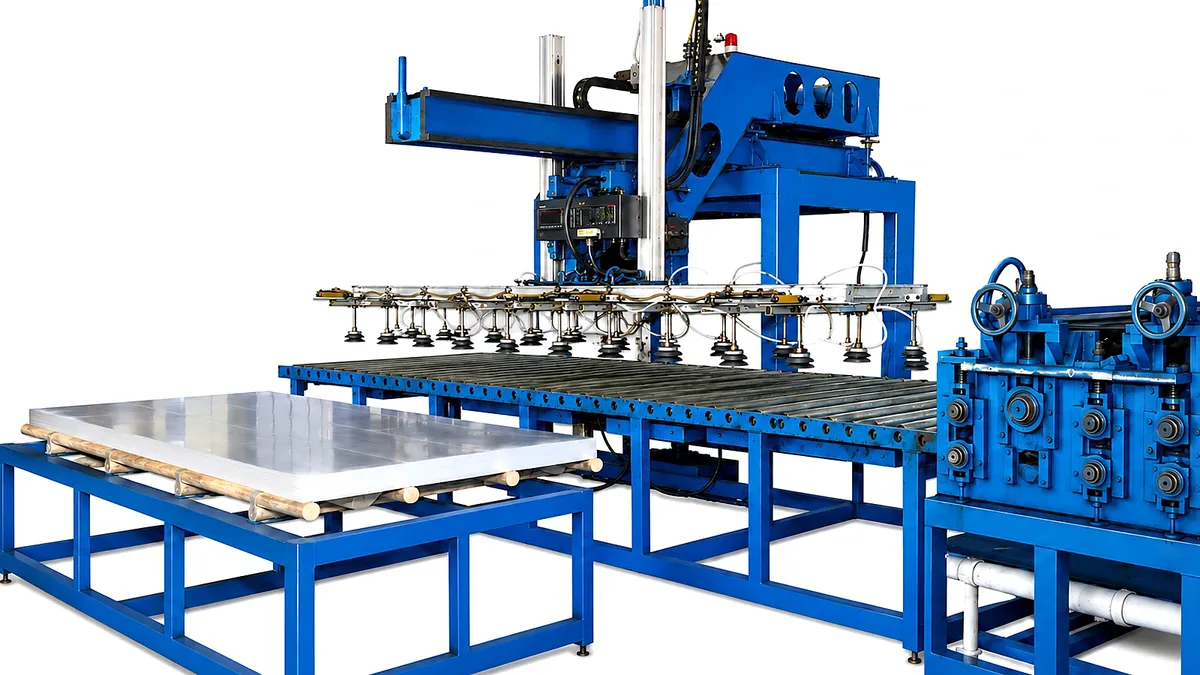

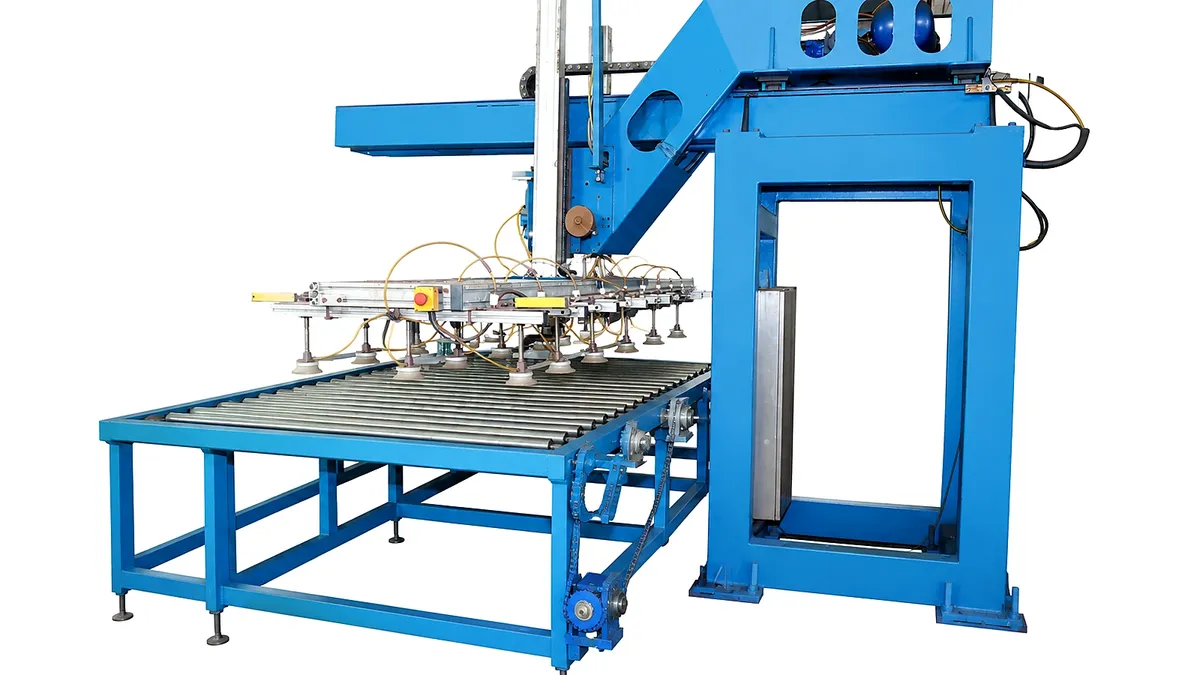

Automatic loading and unloading racks keep feeding consistent, protect the surface and support the documented output of 60–70 pieces per hour.
